ODYSSEY Drycell PC 2250

Call us toll-free (888) 379-2555
Home | Batteries | Chargers | Hold downs and accessories | Applications | Documentation

PC 2250 Design:

  • Absorbent glass mat (AGM) technology
  • 12V battery pure VRLA
  • Rugged construction

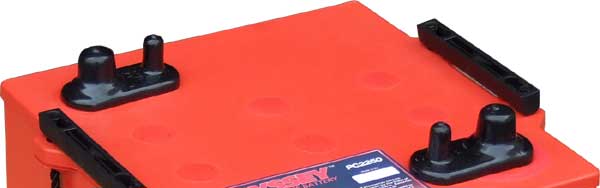

  • Dual SAE DIN Taper and 3/8" stud
  • Can be mounted in any orientation

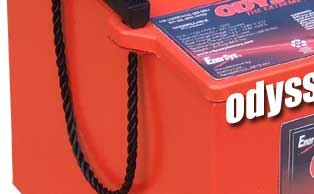

  • Rope lifting handles
  • US DOT and IATA certified non-spillable
  • Shipped fully charged - just install and go
  • Container and cover made from oil resistant plastic

Performance Features:

  • PHCA: 2,250A at 80F (27C); for 5 seconds
  • CCA: 1,225A at 0F (-18C)
  • CA/MCA: 1,550A at 32 (0C)
  • HCA: 1,730 at 80F (27C)
  • Reserve capacity: 240 minutes on 25amps
  • Short circuit current: 5,000A
  • Deep cycling capability: 400 at 80% DOD
  • Design life: 12 years
  • Typical service life: 6 to 8 years
Physical Characteristics:

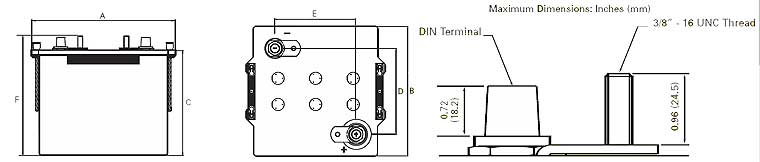

Nominal Dimensions, in. (mm)
A
B
C
D
E
F
11.14
10.47
8.07
6.93
6.54
9.17
(283.0)
(266.0)
(205.0)
(176.0)
(166.0)
(233.0)

Weight: 86 pounds

High rate discharge:

2,250 amps for 5 seconds
2,075 amps for 10 seconds
1,975 amps for 15 seconds
1,775 amps for 20 seconds

$514.46
Volume discounts and dealer pricing available. Free shipping in the continental US.

International orders must be phoned or emailed for a shipping cost

<back to top>

ODYSSEY PC 2250 performance data at 25C, per 12V module

Time to 10.02v

Time
Watts
(W)
Amps
(A)
Capacity
(AH)
Energy
(WH)
2 min.
7090
671.6
22.4
236.1
5 min.
4820
443.8
37.0
401.5
10 min.
3291
296.4
50.4
559.5
15 min.
2553
227.1
56.8
638.3
20 min.
2107
185.8
61.3
695.3
30 min.
1583
137.9
69.0
791.5
45 min.
1170
100.9
75.7
877.5
1 hour
937
80.2
80.2
937.0
2 hour
536
45.2
90.4
1072.0
3 hour
382
32.0
96.0
1146.0
4 hour
299
25.0
100.0
1196.0
5 hour
247
20.6
103.0
1235.0
8 hour
165
13.8
110.4
1320.0
10 hour
137
11.4
114.0
1370.0
20 hour
76
6.3
126.0
1520.0
